Military Lubricant Fluids

MIL-PRF-63460F TY:1

RADCOLUBE® CLP

CLEANER, LUBRICANT, PRESERVATIVE

RADCOLUBE® CLP (GUN OIL) is for cleaning, lubricating and short-term preservation of small and large caliber military weapons, operating in the temperature range of -51 to + 71 Degrees C (-60 to +160 Degrees F). Meets MIL-PRF-63460F TY:A , NATO Code Number S-758. DOD Approved / DOD Qualified

Qualification Numbers

AR-16-10

Qualification Date

3 October 2016

ISO 9001: 2015 Certification Number

C2018-00035

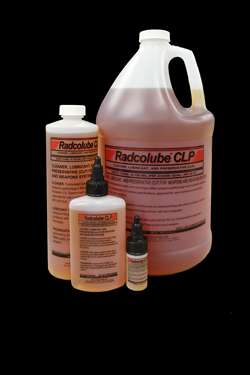

National Stock Numbers Available From Radco

* 5 Gallon Pails Available at Request

9150-01-102-1473                0.5oz Bottle with Twist Cap

9150-01-079-6124                4oz Bottle with Twist Cap

9150-01-054-6453                1 Pint Bottle with Trigger Sprayer

9150-01-327-9631                1 Liter Bottle with Trigger Sprayer

9150-01-053-6688                1 Gallon Jug

CLEANER: Formulated to keep small and large caliber weapons preforming in the harshest conditions. Exceeds U.S. Government CLP military specifications, approved for use in extreme environments including cold, salt, and dust.

LUBRICANT: Helps weapons perform continuously at maximum firing rate without incident. Proven in extreme conditions with a fire rate of 650 rounds/min with zero stoppages.

PRESERVATIVE: Trusted by the U.S. Military and approved by the U.S. Government to keep their weapons battle ready. Let RADCOLUBE CLP (GUN OIL) help protect your weapon.

Property
Requirement
Result
Verification
Graphite Content  None  None  Paragraph 4.1.2
Ozone depleting substances (ODSs) content None None  Paragraph 4.2.2
Toxicity and hazardous materials content None None  Paragraph 4.2.3
Color and appearance Pass Pass  Paragraph 4.2.4
Flash Point, minimum (min) 65°C (149°F) 188°C (370°F) ASTM D92
Pour Point, maximum (max) -59°C (-74°F) -62°C (79.6°F) ASTM D97
Viscosity, Kinematic, cSt

(with solvent) at 40°C (104°F), min

(with solvent evaporated) at -40°C (-40°F), max



14.0

5,000



14.9

2,700



ASTM D445

ASTM D445; D972

Wear Preventive Characteristics, mm max 0.8 0.64 ASTM D4172
Load Carrying Capacity, pounds min 500 Pass ASTM D5620
Corrosion Production, mg/cm2 max

Aluminum

Brass Steel

Cadmium

Copper

Magnesium

Zinc



0.2 mg/cm2

1.0 mg/cm2

1.5 mg/cm2

1.5 mg/cm2

0.5 mg/cm2

1.5 mg/cm2



0.00

-0.01

-0.01

-0.04

0.00

0.02

Paragraph 4.3.1
Chemical Agent Detector Paper Pass Pass Paragraph 4.3.2
Humidity Resistance after 900 hours Pass Pass ASTM D1748
Salt-spray Resistance after 100 hours Pass Pass ASTM B117
Water Displacement/Stability Pass Pass FTM[1] 3007
Firing Residue Removal, min 40% Pass Paragraph 4.5.1
Cold Temperature – Weapons Firing Pass Pass Paragraph 4.5.2.6
Sand/dust environments – Weapons Firing Pass Pass Paragraph 4.5.2.7
Salt-spray environment – Weapons Firing Pass Pass Paragraph 4.5.2.7
