MIL-PRF-46170E TYPE 1

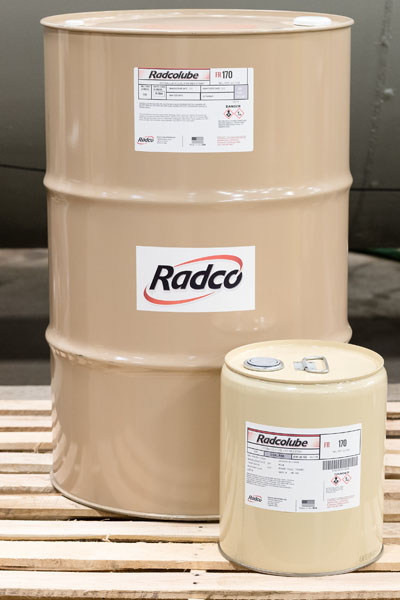

RADCOLUBE® FR170

HYDRAULIC FLUID, RUST INHIBITED, FIRE RESISTANT, SYNTHETIC HYDROCARBON

This product is a synthetic hydrocarbon base hydraulic fluid for use in the -40°C to 200°C (-40°F to 392°F) temperature range in recoil mechanisms and ground vehicle and equipment hydraulic systems.

Technical Data Sheet

Safety Data Sheet

Contact Sales Representative

Terms and Conditions

Qualification Numbers

HF-78
HF-79
HF-80
HF-82
HF-83

Qualification Date

17 May 2019
11 March 2021
16 March 2021
20 July 2021
20 July 2021

ISO 9001: 2015 Certification Number

C2024-00254

NATO Code

H-544

Shelf Life

24 Months from DOM

National Stock Numbers (NSN)

9150-01-332-7819             Pint
9150-00-111-6256             Quart
9150-00-111-6254             Gallon
9150-00-111-6255             5 Gallon Pail
9150-01-158-0462 55 Gallon Drum

CHARACTERISTICS	REQUIREMENT	TYPICAL RESULTS	TEST METHOD
Kinematic Viscosity, centistokes
@ 40 °C, maximum	19.5 cSt	17.1 cSt	ASTM D445
@ 100 °C, minimum	3.4 cSt	3.74 cSt	ASTM D445
@ -40 °C, maximum	2,600 cSt	1,860 cSt	ASTM D445
Evaporation Loss (%wt), maximum	5.0	3.19	FED STD 791-350.2
Trace Sediment, ml, maximum	0.005	0.001	ASTM D2273
Pour Point, °C, maximum	-54°C	< -60°C	ASTM D5949
Flash Point, °C, minimum	218°C	232°C	ASTM D92
Fire Point, °C, minimum	246°C	250°C	ASTM D92
Total Acid Number, maximum	0.20 mg KOH/g	0.11 mg KOH/g	ASTM D664
Water %, maximum	0.05	0.0054	ASTM D6304
Solid Particle Contamination per 100 ml, microns
5 to 25	10,000	5286	FED STD 791D 3012
26 to 50	250	92	FED STD 791D 3012
51 to 100	50	108	FED STD 791D 3012
> 100	10	0	FED STD 791D 3012
Rust Prevention, 100 hours	PASS	PASS	ASTM D1748
