Military Lubricant Fluids

MIL-H-19457D

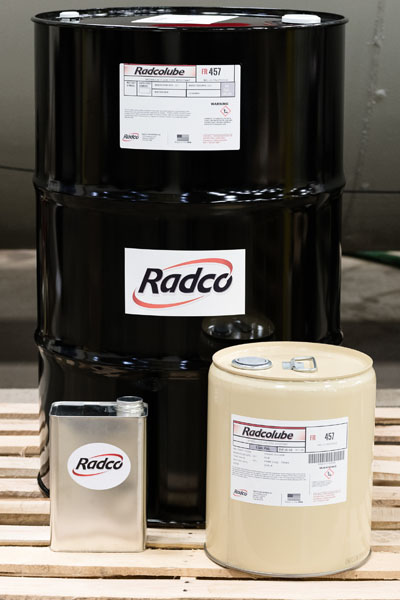

RADCOLUBE® FR457

FIRE RESISTANT, HYDRAULIC FLUID, NON-NEUROTOXIC

RADCOLUBE FR457 is a military-specified synthetic, fire-resistant hydraulic fluid consisting of butylated phosphate esters. Designed for safe use in accumulator loaded hydraulic systems operating above 600 lbs psi, MIL-H-19457D(SH)demonstrates outstanding operational performance and fire resistance properties in both military and industrial/commercial naval applications.

Safety Data Sheet

EU Safety Data Sheet

Typical Data Sheet

Contact Aviation Representative

Contact MILSPEC Representative

Terms and Conditions

ISO 9001: 2015 Certification Number

C2021-00038

Military Symbol

MIL-H-19457D

National Stock Numbers Available From Radco

9150-01-113-2045 Gallon

9150-01-113-2046 5 Gallon Pail

9150-01-113-2047 55 Gallon Drum

CHARACTERISTICS	REQUIREMENT	TYPICAL RESULTS	TEST METHOD
Kinematic Viscosity, centistokes
@ 40 °C, minimum	38.5 – 45.5 cSt	43.8 cSt	ASTM D445
@ 100 °C, maximum	4.8 cSt	5.0 cSt	ASTM D445
Neutrality	Neutral	Conforms	METHOD 5101
Evaporation Loss (%wt), maximum	0.3%	0.09%	ASTM D972
Pour Point, °C maximum	-18°C	-18°C	ASTM D97
Acid Number, maximum	0.1	0.01	ASTM D974
Neutrality, qualitative	Neutral	Conforms	Method 5101
Water Content, %	None	None	ASTM D95
Refractive Index, Nd @ 40°C	Report	1.5509	ASTM D1218
Foaming Tendency @ 24°C mL maximum	65	10	ASTM D892
Form Stability, mL after 10 minutes, maximum	Complete collapse	Complete collapse	ASTM D892
Specific Gravity	Report	1.154	ASTM D287
Precipitation	0.01	0.00	ASTM D91
Appearance	No visible corrosion	No visible corrosion	ASTM D892
Acid Number Increase maximum	0.20 mg KOH/g	0.09 mg KOH/g	ASTM D892
Acidity of Water Layer, maximum	5.0 mg KOH/g	4.0 mg KOH/g	ASTM D892
Insolubles, % maximum	0.5%	0.004%	ASTM D892
